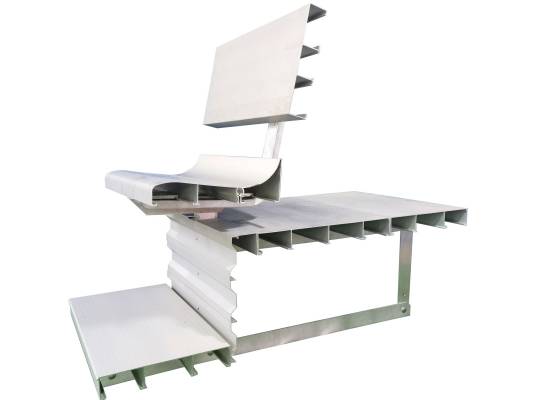

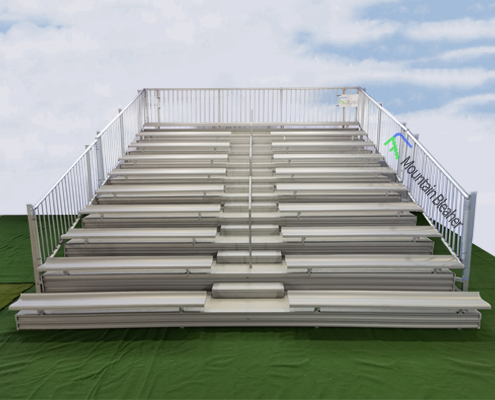

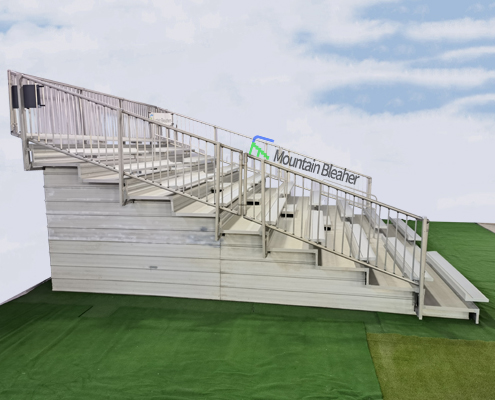

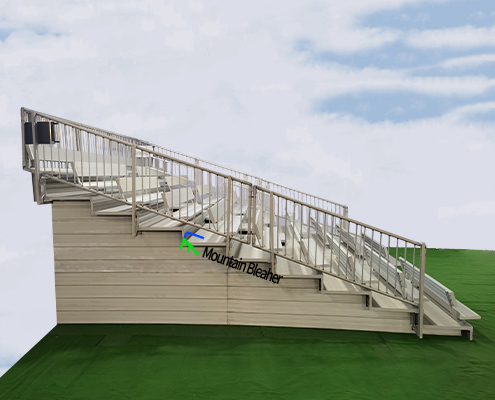

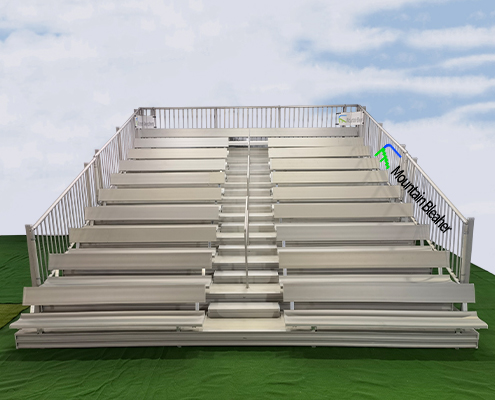

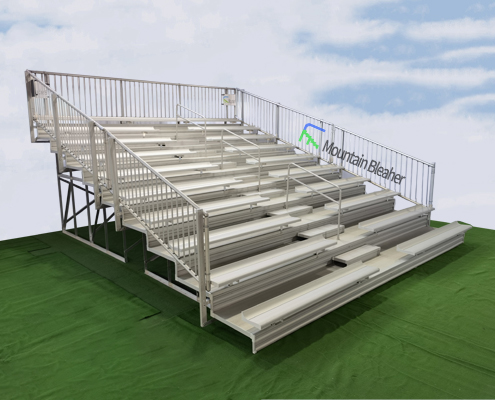

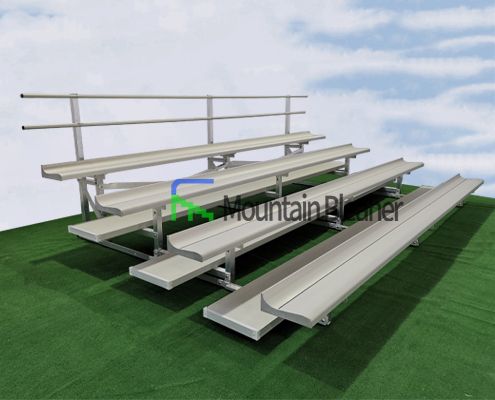

This series of products are made of high strength 6061-T6 aluminum alloy material，suitable for using in all kinds of weather environments.

Aluminum Seat Plank:250mm*50mm*2mm,291mm*50mm*2mm,300mm*100mm*50mm*2mm.It’s designed according to ergonomics, more safety and comfortable, variety color options are available for the surface layer by powder spraying, more beautiful;

Material of Support Structure:50mm*5mm Aluminum Angle.Surface Treatment:Anodizing.

Total 3 models for this series, please refer to the drawings for the details of each model.

This series of products are our first-recommended products and hot-selling products!

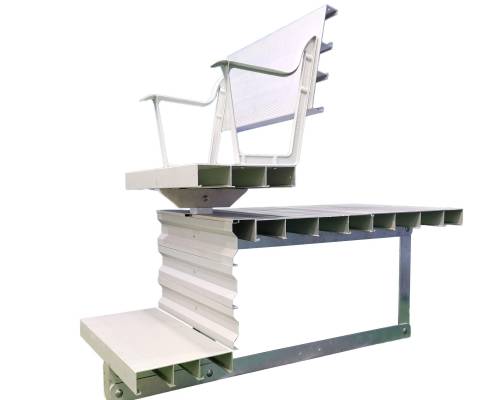

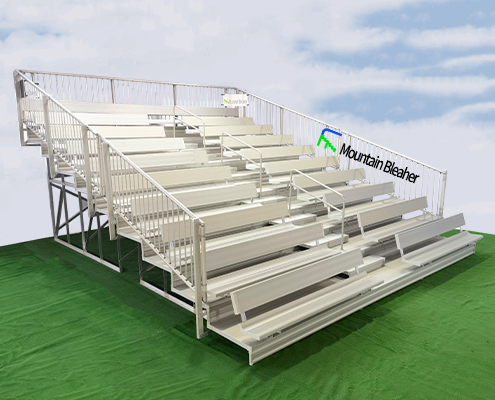

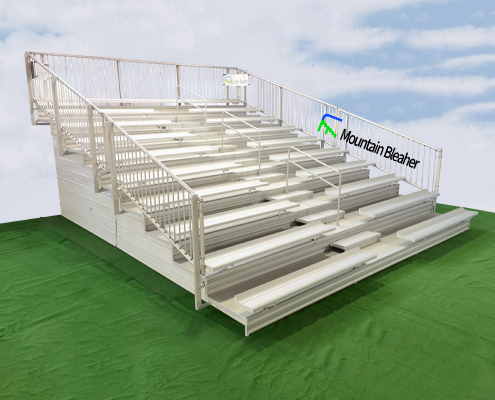

This series of products are made of high strength 6061-T6 aluminum alloy material，suitable for using in all kinds of weather environments.This model of bleacher added a seat backrest and armrest for greater comfort.

Aluminum Seat Plank:250mm*50mm*2mm,291mm*50mm*2mm,300mm*100mm*50mm*2mm.It’s designed according to ergonomics, more safety and comfortable, variety color options are available for the surface layer by powder spraying, more beautiful;

Material of Support Structure:50mm*5mm Aluminum Angle.Surface Treatment:Anodizing.

Total 3 models for this series, please refer to the drawings for the details of each model.

This series of products are our first-recommended products and hot-selling products!

Mount-S300+ Series product description: Standard: The International Building Code (IBC) Certifications: CE, SGS OEM services available Anodizing 6061-T6 angle aluminum (Size 50mm*5mm) angle frame understructure Anodizing 6061-T6 aluminum oxide seat plank and footboards Stainless steel bolts

Powder coated finishes with optional colors

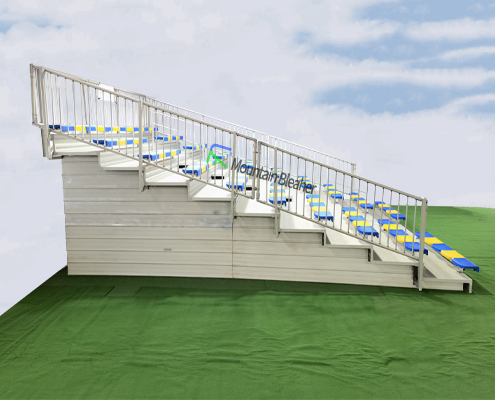

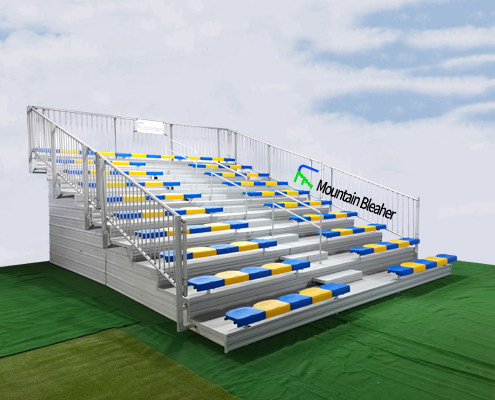

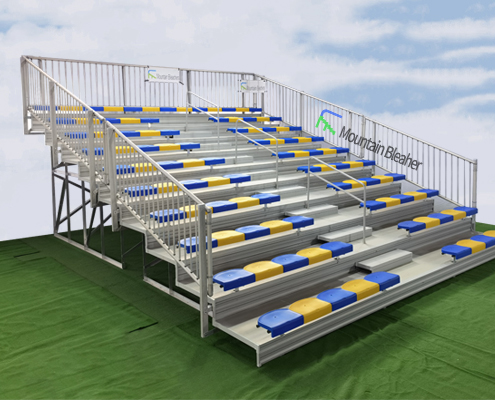

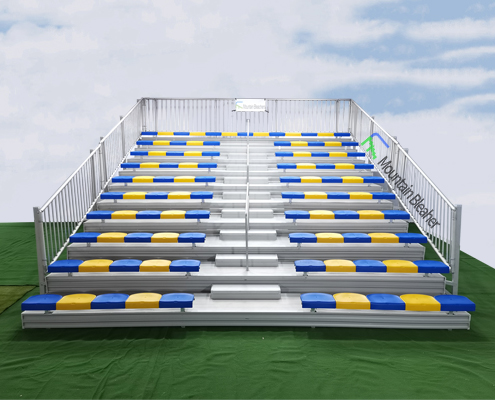

This series of products are match with HDPE Blow Moulded Plastic Seats, more comfortable.At the same time provides a richer color combination, looks more beautiful.

Material of Support Structure:50mm*5mm Aluminum Angle.Material:6061-T6. Surface Treatment:Anodizing.

Total 3 models for this series, please refer to the drawings for the details of each model.

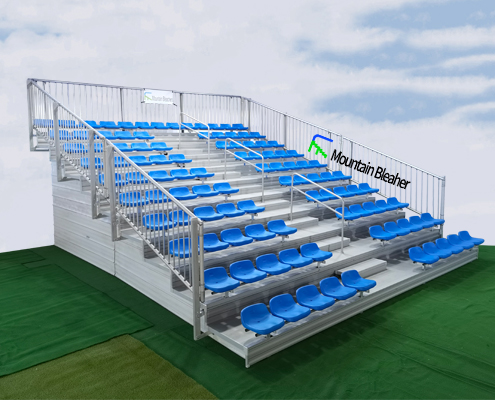

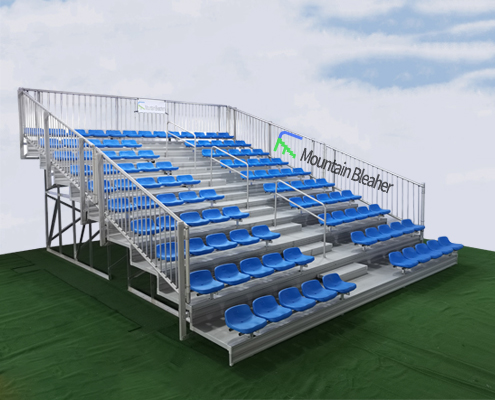

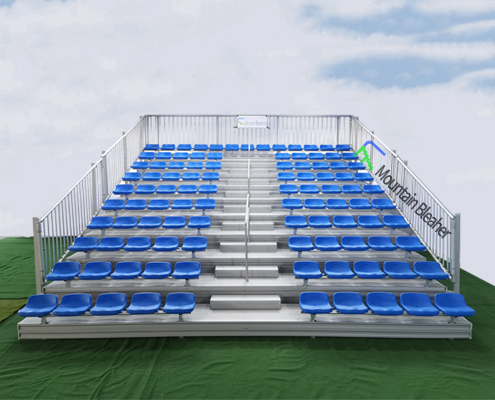

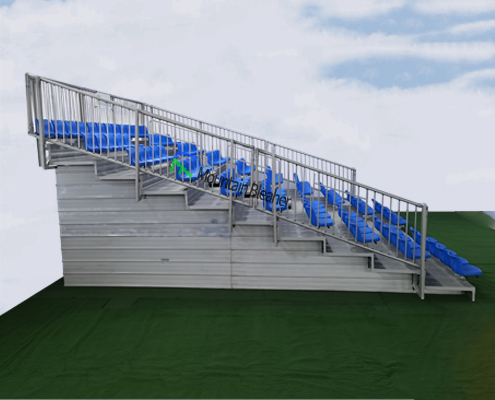

This series of products are match with Low Backrest HDPE Blow Moulded Plastic Seats.It’s designed according to ergonomics, more comfortable.Seats can be combined in different colors.Because the seat is more wider, the row spacing of this series of products is recommended to be 750mm and above.

Material of Support Structure:50mm*5mm Aluminum Angle.Surface Treatment:Anodizing.

Total 3 models for this series, please refer to the drawings for the details of each model.

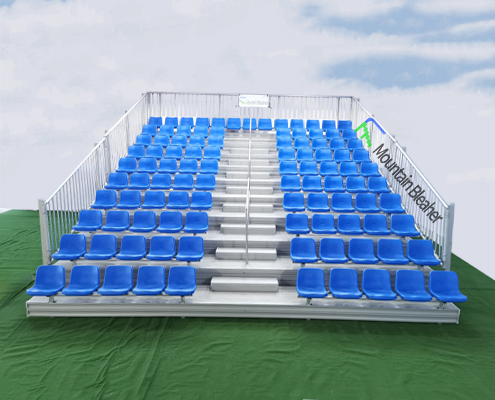

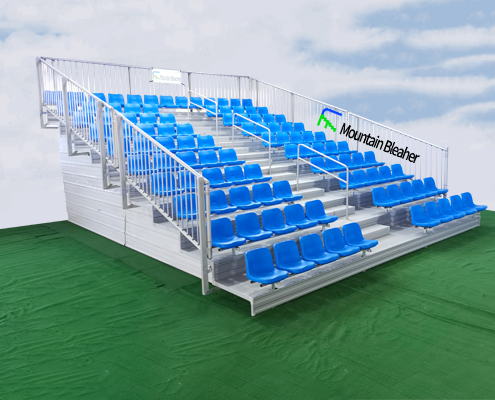

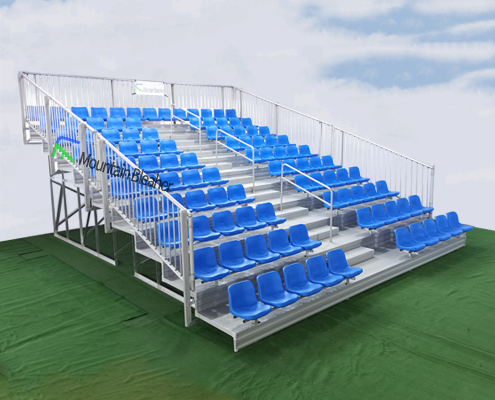

This series of products are match with Middle Backrest HDPE Blow Moulded Plastic Seats.It’s designed according to ergonomics, more comfortable.Seats can be combined in different colors.Meanwhile it’s more safety with the protection of backrest.Seats can be combined in different colors.Because the seat is more wider, the row spacing of this series of products is recommended to be 750mm and above.

Material of Support Structure:50mm*5mm Aluminum Angle.Surface Treatment:Anodizing.

Total 3 models for this series, please refer to the drawings for the details of each model.

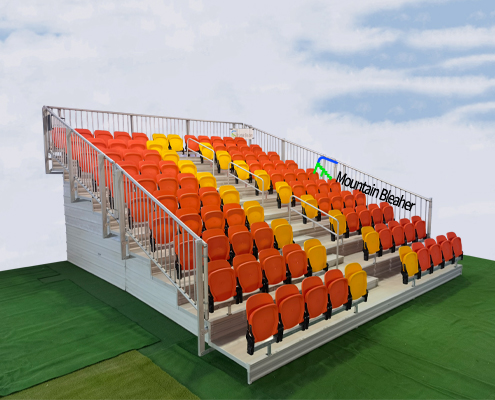

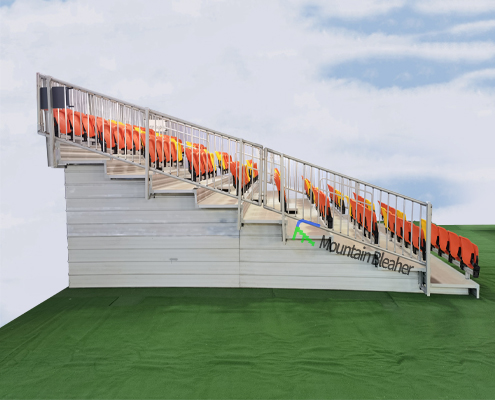

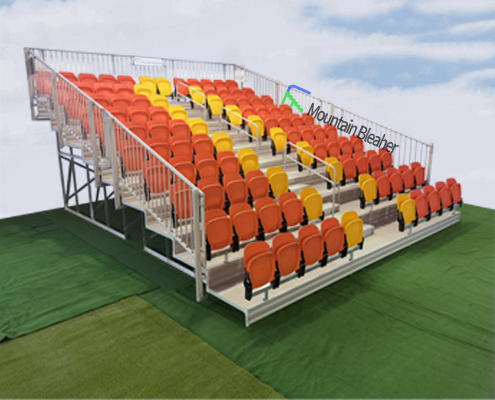

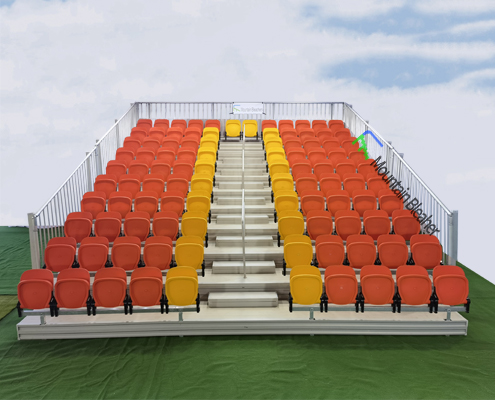

This series of products are match with Injection Moulded Polypropylene (PP) Tip-up seat.It’s designed according to ergonomics, more safer, durable and comfortable.Meanwhile it’s more safety with the protection of backrest.Seats can be combined in different colors.Because the seat is more wider, the row spacing of this series of products is recommended to be 750mm and above.

Material of Support Structure:50mm*5mm Aluminum Angle.Surface Treatment:Anodizing.

Total 3 models for this series, please refer to the drawings for the details of each model.

Before purchasing aluminum grandstands, let’s learn IBC-International Building COD together, so that we can have a better understanding of what is the most important.

This series of aluminum bleachers are suitable for 3-15 rows. If you want higher bleachers or other requirements, please feel free to contact us.

SECTION 303

STRUCTURAL DESIGN
303.1 Design. The structural design shall be in accordance with the building code.
303.2 Loads.Bleachers, folding and telescopic seating, and grandstands shall be designed for a uniform live load of 100 pounds per square foot(psf)(4788 Pa). Press boxes shall be designed for a uniform live load of 50 psf (2394 Pa).
303.6 Deflections. Live load deflection of structural mem- bers shall be limited to 1/200 of the span.
303.7 Foundations. A foundation, designed to support all loads, shall be provided as required by the building code.
Exception: Outdoor installations that are directly sup- ported on the ground that is adequate to support the super- imposed loads.

SECTION 311

OPEN SPACES BENEATH FOOTBOARDS AND SEATBOARDS
311.1 Open spaces at footboards and seatboards. Where an opening between the seatboard and footboard is located more than 30 inches(762 mm) above the floor or ground below, the opening shall be closed with construction such that a 4-inch-diameter(102 mm)sphere cannot pass through.

Our products fully meet the requirements of IBC-International Building Code. In fact, our products are better in terms of safety and comfort. We provide three models for you to choose from.
Standard Models：Row Spacing：650mm，Rise：220mm
Preferred Models：Row Spacing：750mm，Rise：250mm
Deluxe Models：Row Spacing：800mm，Rise：300mm
All the metal grandstands shown in this chapter are of 10 floors. Aluminum stands of this structural are suitable for 3-15 rows. You can also put forward your requirements, and we will provide design and production services according to your requirements.
Glad to receive your call at 008618879222225, we will design for you free of charge in accordance with your requirements of the metal grandstands.
