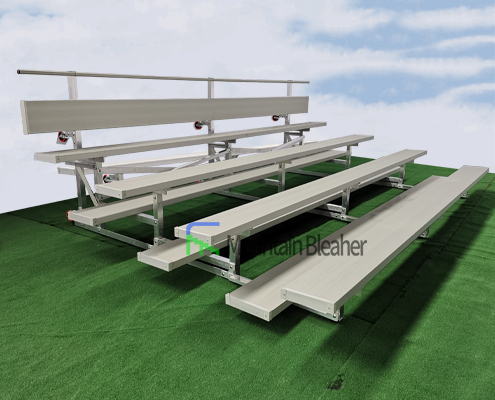

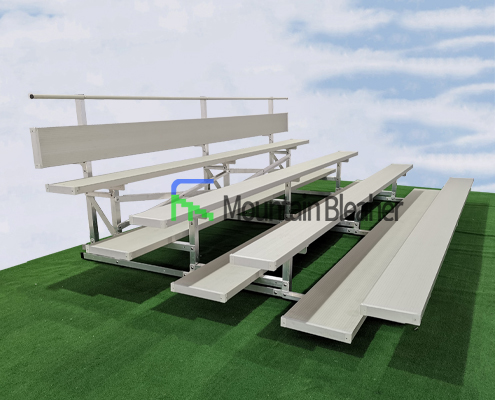

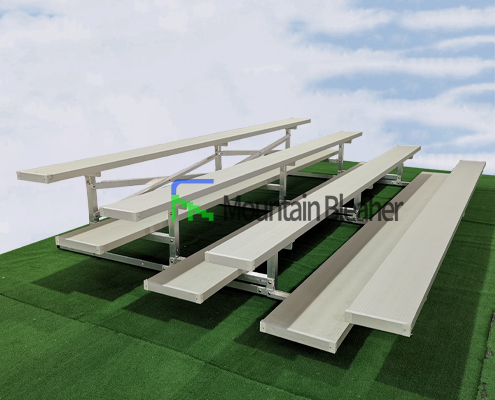

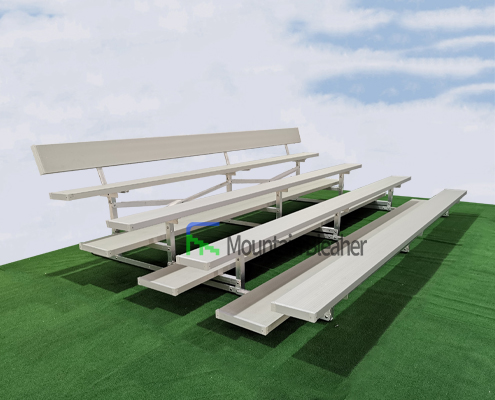

This series of products are made of 6061-T6 aluminum alloy material，suitable for using in all kinds of weather environments.The bolt is 304 stainless steel, and we provides 12 different models for you to choose, each model details please refer to the drawing.

Product advantages: High strength、Portable、Corrosion resistant

Material of Support Structure: 50mm*5mm Aluminum Angle

4 Kinds of Foot Plank for your choice: 250mm*38mm*2mm，250mm*50mm*2mm，291mm*50mm*2mm，397mm*50mm*2mm;

3 Kinds of Aluminum Seat Plank: 250mm*38mm*2mm，250mm*50mm*2m，291mm*50mm*2mm;

Row Spacing: 650MM、700MM、750MM;

Length: 2286mm,4572mm;

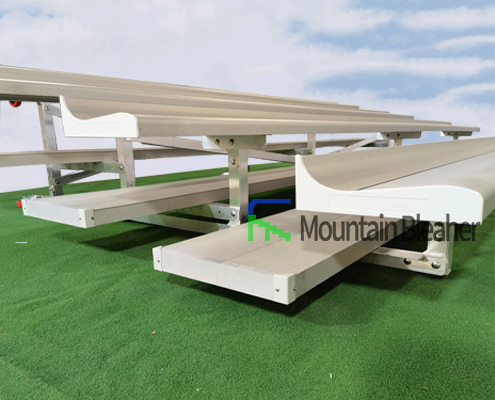

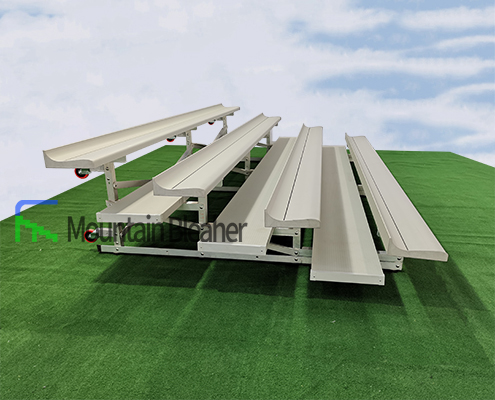

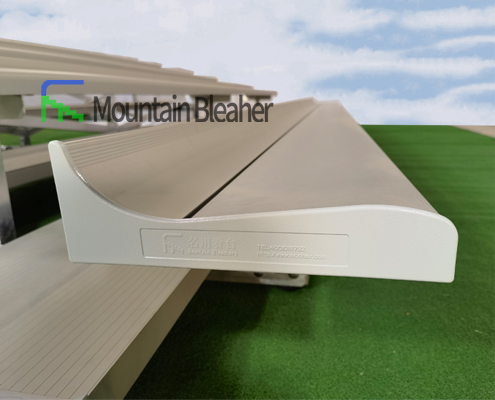

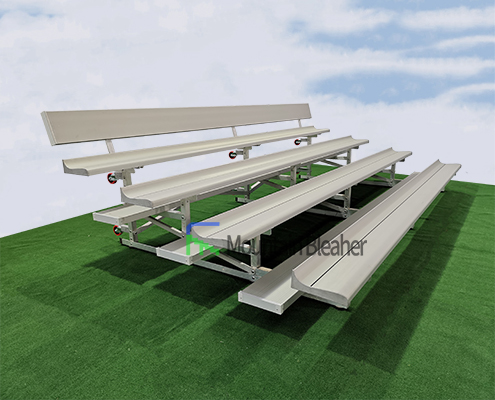

This series of products are made of 6061-T6 aluminum alloy material, Aluminum Seat Plank 300mm*100mm*50mm*2mm.It’s designed according to ergonomics, more safety、comfortable, variety color options are available for the surface layer by powder spraying, more beautiful;

Material of Support Structure:50mm*5mm Aluminum Angle

2 Kinds of Foot Plank for your choice: 291mm*50mm*2mm，397mm*50mm*2mm

Seat Plank：300mm*100mm*50mm*2mm;

Row Spacing:650MM、700MM、750MM;

Length: 2286mm(20 Seats),4572mm(40 Seats);

Total 8 models for this series, please refer to the drawings for the details of each model.

This series of products are the hot-selling products in market.

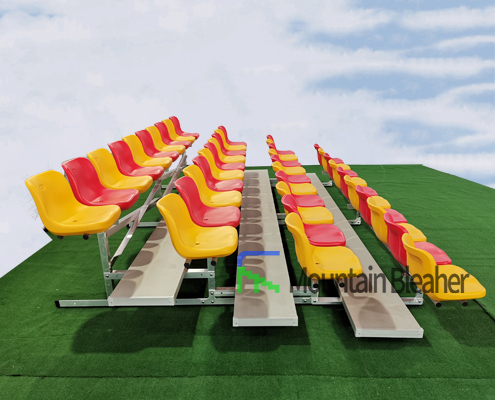

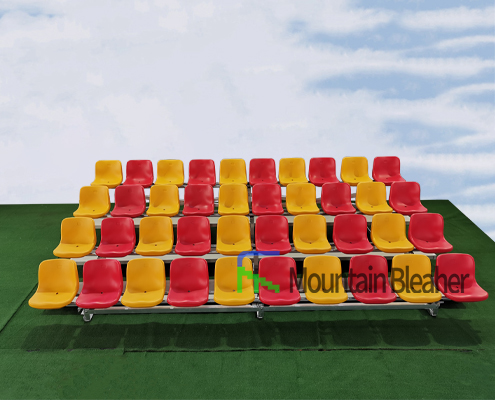

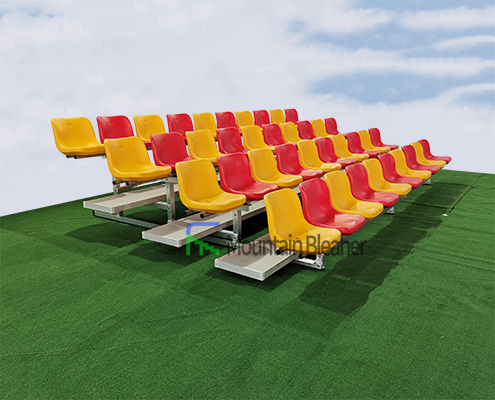

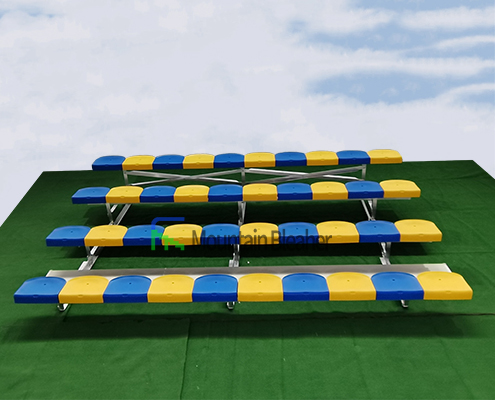

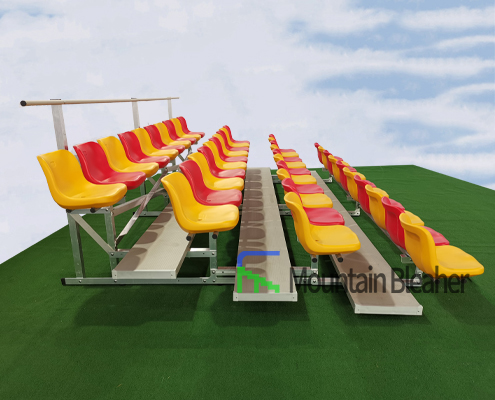

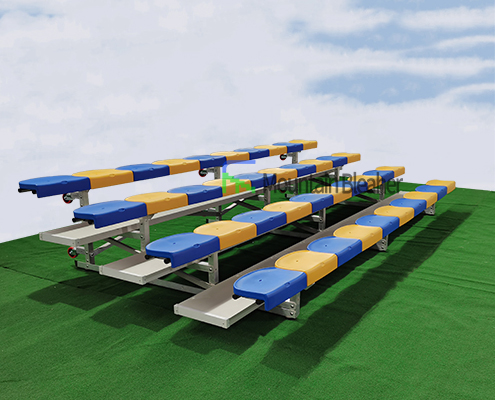

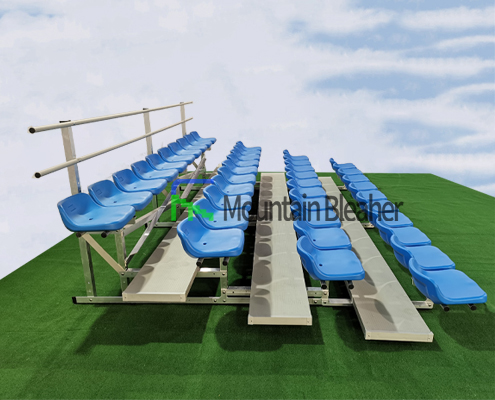

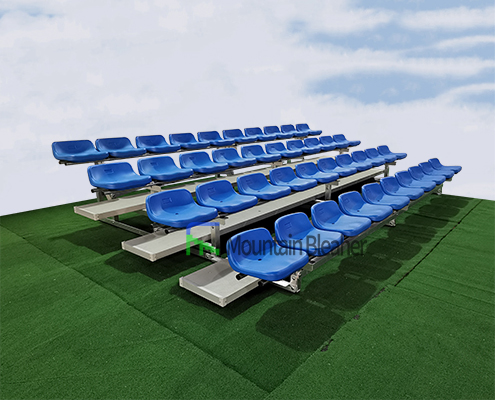

This series of products are match with HDPE Blow Moulded Plastic Seats, more comfortable.At the same time provides a richer color combination, looks more beautiful.

Material of Support Structure:50mm*5mm Aluminum Angle.Material:Aluminum 6061-T6 .Surface treatment: Anodizing；

3 Kinds of Foot Plank: 250mm*50mm*2mm，291mm*50mm*2mm，397mm*50mm*2mm.Material: Aluminum 6061-T6.Surface Treatment:Anodizing；
Length:2286mm，4572mm;

Total 12 models for this series, please refer to the drawings for the details of each model.

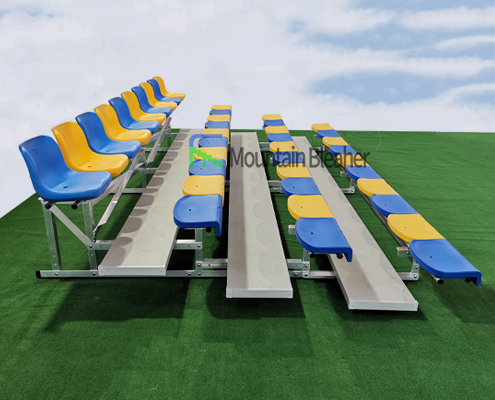

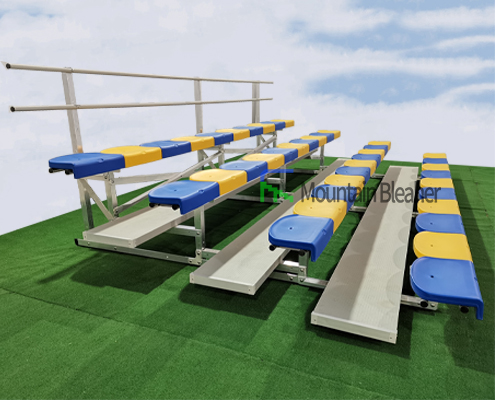

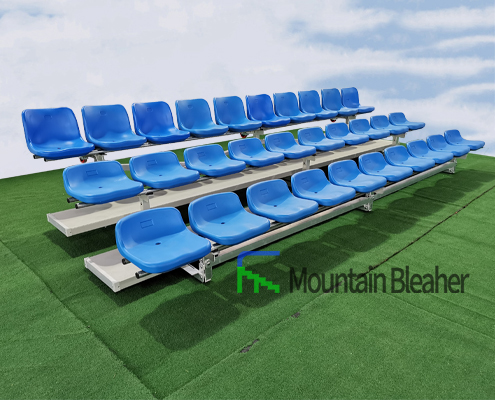

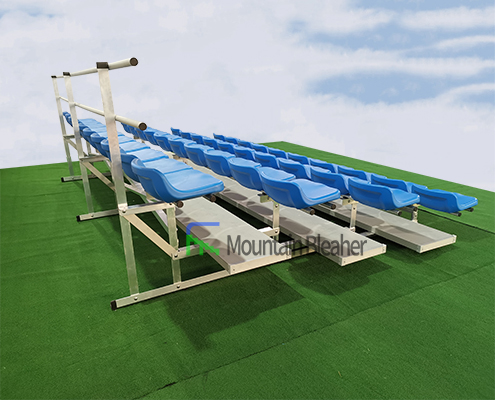

This series of products are match with HDPE Blow Moulded Plastic Seats, more comfortable.It’s designed according to ergonomics, more comfortable.Seats can be combined in different colors.Because the seat is more wider, the row spacing of this series of products is recommended to be 700mm and above.

Material of Support Structure:50mm*5mm Aluminum Angle.Surface treatment: Anodizing;

2 Kinds of Foot Plank for your choice: 291mm*50mm*2mm，397mm*50mm*2mm.Material: Aluminum 6061-T6.Surface Treatment: Anodizing.

Length: 2286mm, 4572mm;

Total 6 models for this series, please refer to the drawings for the details of each model.

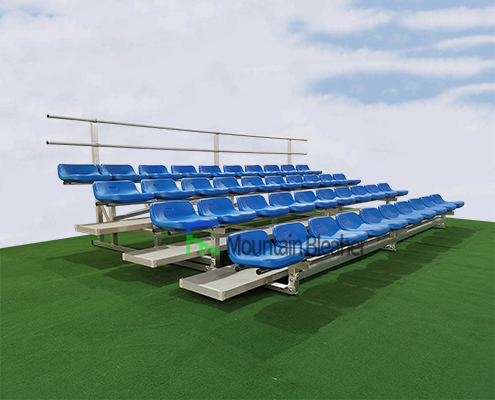

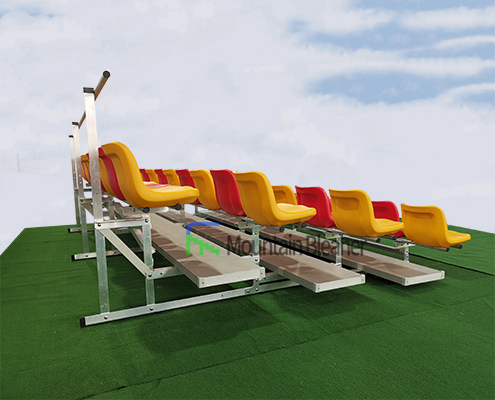

This series of products are match with HDPE Blow Moulded Plastic Seats with backrest.It’s designed according to ergonomics, more comfortable.Meanwhile it’s more safety with the protection of backrest.Seats can be combined in different colors. Because the seat is more wider, the row spacing of this series of products is recommended to be 750mm and above.

This series of products is more suitable for indoor or shading environment.

2 Kinds of Foot Plank for your choice: 291mm*50mm*2mm，397mm*50mm*2mm

Row Spacing: 750MM,800MM;

Total 4 models for this series, please refer to the drawings for the details of each model.

Before you choose 2 row, 3 row, 4 row portable bleachers, let’s learn about the IBC code.

IBC code An 405.1 An aisle is not required in seating facilities where all of the following conditions exist.

The first seating board is not more than 12 inches (305 mm) above the ground or floor below or a cross aisle.

• Seats are without backrests.
• The row spacing does not exceed 28 inches (711 mm) unless the seatboards and footboards are at the same elevation.
• The rise from row to row does not exceed 6 inches (152 mm) per row.
• Seatboards provide a walking surface with a minimum width of 1 1inches (279 mm).
• Seatboards have a continuous flat surface.
• Egress from seating is not restricted by rails, guards or other

Summary: If the rear of the bleacher is less than 30 inches in height then you don’t have to have a guardrail system which meets the #7 criteria. To meet #1 – 6 you decrease the standard rise from 8” to 6”, decrease the height of the first seat from a standard of 17” to 12” and increase the seat board width from 10” to 12”. By doing the above a three and four row bleacher does not need an aisle.

After you learn about the IBC code, you may find that some of our products can’t fit IBC code. But we think that some regions and some users, they need products beyond the IBC code, which are more comfortable and safer. What’s more importantly, we can customize your bleacher products according to your local regulations and your requirements. You can also contact us at 0086-18879222225. We are always happy to answer your any questions about aluminum bleachers.
